Compare the CORPEX machine vision measurement family, from compact sensor systems to larger-diameter production applications. Review the specifications that matter when selecting a system for your line.

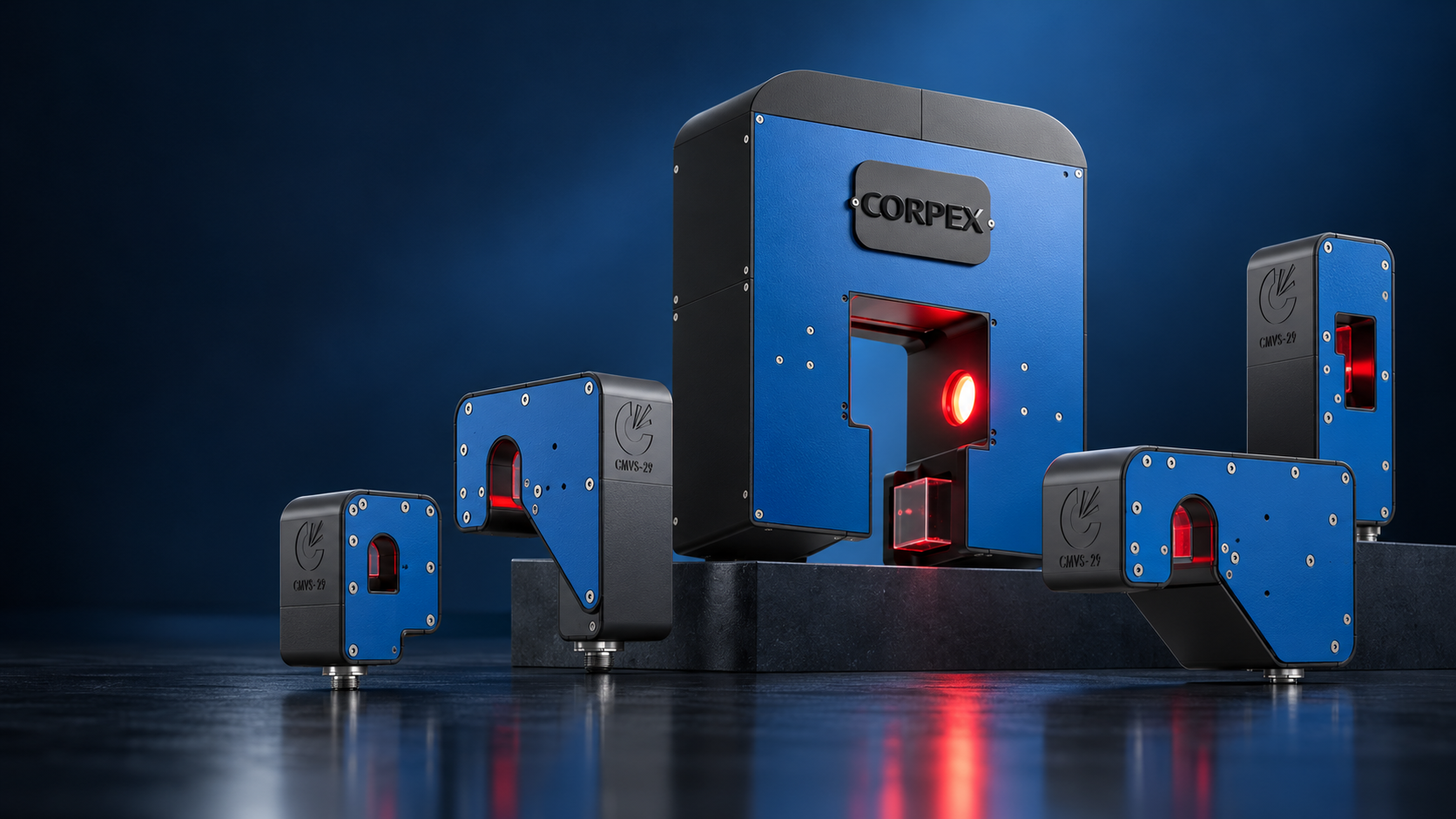

Compare the C29, CMVS 35, CMVS 55, CMVS 100 and CMVS 125. Each system offers a defined measurement range and technical configuration for different production requirements.
Selecting a sensor head involves more than outside diameter alone. Measurement accuracy, product pitch, operating conditions and connectivity requirements all need to be considered.
Review the target OD range supported by each system.
Compare published accuracy specifications and maximum convolution pitch.
Review input power, communications and operating requirements.
Technical specifications for the C29, CMVS 35, CMVS 55, CMVS 100 and CMVS 125.
Need assistance interpreting the specifications for your production line? Talk to CORPEX →
← Swipe horizontally to compare all five systems →
| Specification | C29 | CMVS 35 | CMVS 55 | CMVS 100 | CMVS 125 |
|---|---|---|---|---|---|
| Dimensions H × W × D | Not fixed | 131 × 240 × 400 mm 5.16 × 9.45 × 15.75 in | 273 × 190 × 540 mm 10.75 × 7.48 × 21.26 in | 561 × 505 × 108 mm 22.1 × 19.9 × 7.1 in* | 561 × 505 × 108 mm 22.1 × 19.9 × 7.1 in* |
| Input Power | 24V DC – M12 4-pin female connector | 24V DC – M8 3-pin female connector | 24V DC – M12 4-pin female connector | 24V DC – EVC811 4-pin female connector | 24V DC – EVC811 4-pin female connector |
| Operating Temperature | 0°C to 50°C32°F to 122°F | 0°C to 50°C32°F to 122°F | 0°C to 50°C32°F to 122°F | 0°C to 50°C32°F to 122°F | 0°C to 50°C32°F to 122°F |
| Communication | 1× Ethernet | 1× Ethernet | 1× Ethernet | 4× Ethernet | 4× Ethernet |
| Operation | Integrated HMI | Integrated HMI | Integrated HMI | Integrated HMI | Integrated HMI |
| Measurement Display | Operator / Supervisor Imperial measurement display | Operator / Supervisor Imperial measurement display | Operator / Supervisor Imperial measurement display | Operator / Supervisor Imperial measurement display | Operator / Supervisor Imperial measurement display |
| Target OD Range | 5–32 mm* 0.20–1.15 in* | 5–35 mm 0.20–1.35 in | 6–55 mm 0.25–2.2 in | 6–100 mm 0.25–4 in | 6–125 mm 0.25–5 in |
| Measurement Accuracy | ±0.001 in At 50 ft/min ±0.0254 mm at 25 m/min | ±0.001 in At 80 ft/min ±0.0254 mm at 25 m/min | ±0.002 in At 80 ft/min ±0.05 mm at 25 m/min | ±0.002 in At 80 ft/min ±0.05 mm at 25 m/min | ±0.002 in At 80 ft/min ±0.05 mm at 25 m/min |
| Maximum Pitch | 0.65 in 16.5 mm 18 CPF / 59 CPM | 0.65 in 16.5 mm 18 CPF / 59 CPM | 0.75 in 19 mm 16 CPF / 52 CPM | 0.75 in 19 mm 16 CPF / 52 CPM | 0.75 in 19 mm 16 CPF / 52 CPM |
| Smart Light | Optional | Optional | Optional | Optional | Optional |
Specifications are reproduced from the CORPEX CMVS Series Sensor Head Specifications sheet. *The source contains inconsistencies between metric and imperial values for the C29 target OD range and CMVS 100/125 dimensions. These values require engineering confirmation.
