CMVS-55 EXPANDED RANGE. REAL-TIME CONTROL.
High-accuracy machine vision measurement for larger armored and convoluted cable applications, with continuous visibility into outside diameter, convolution pitch, length and line speed.
Target outside diameter
Accuracy at 80 ft/min
Maximum pitch
Continuous production visibility
More range for larger cable production.

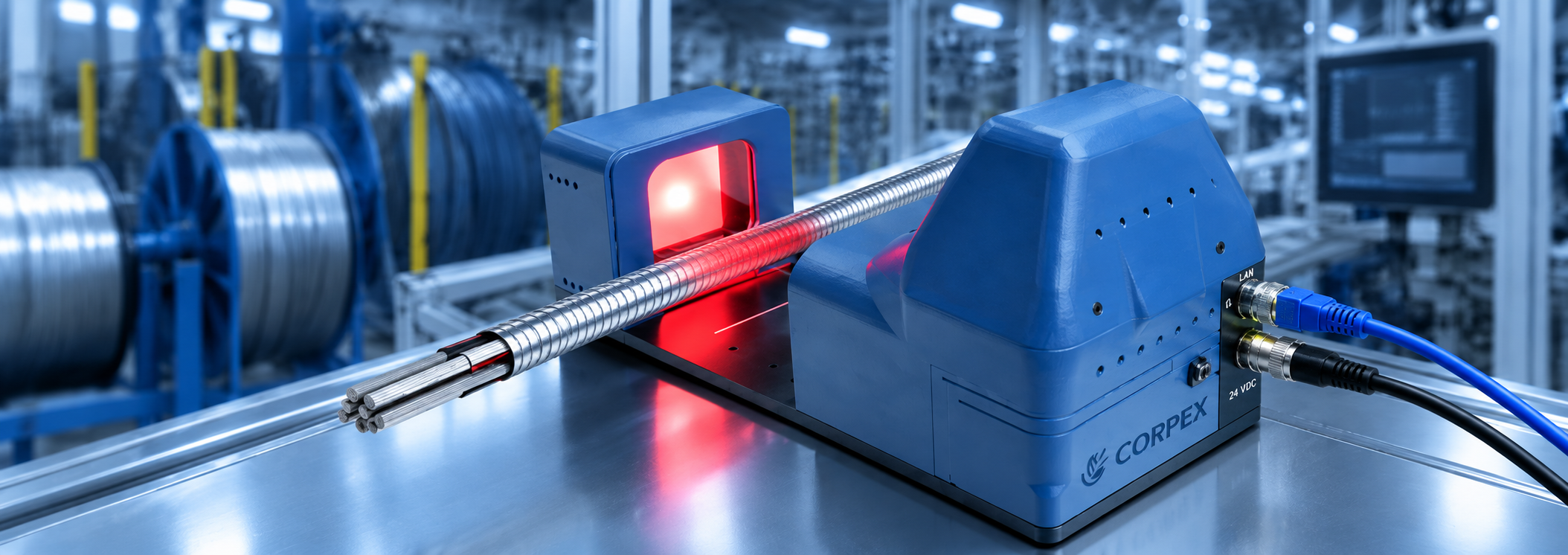

The CMVS-55 expands CORPEX real-time machine vision measurement to armored and convoluted cable products up to 55 mm in outside diameter.
Built for demanding production environments, the system continuously monitors critical dimensions while the line is running, giving operators the information they need to identify variation earlier.
Find process variation before it becomes finished product.
As product size and material value increase, identifying dimensional variation earlier can become even more important. CMVS-55 provides continuous measurement while the line is running.
Diameter variation
Continuously monitor outside diameter across cable sizes from 6 to 55 mm and identify dimensional changes during production.
Pitch variation
Track convolution pitch against configured tolerances and identify process drift while product is still on the line.
Quality visibility
Move beyond periodic inspection with continuous measurement data that supports quality control, troubleshooting and traceability.
Larger cable can make late detection more expensive.
When a dimensional problem goes unnoticed, production can continue until a manual inspection or downstream quality check finally identifies the issue.
CMVS-55 provides continuous production visibility, giving operators the opportunity to identify and respond to process changes before more material, time and value are lost.
See the measurement while you're making the cable.
CMVS-55 turns machine vision data into useful production information that operators and supervisors can see while the line is running.
- Outside diameter measurement
- Convolution pitch measurement
- Product length measurement
- Production speed visibility
- Recipe and tolerance management
- Operator and supervisor screens
Capture. Measure. Respond.
CMVS-55 combines industrial machine vision, real-time processing and an operator interface in a production-ready measurement system.
CMVS-55 Sensor Head
High-speed machine vision captures the profile of larger armored and convoluted cable as it moves through the measurement area.
Industrial Vision Computer
Measurement processing calculates critical dimensions in real time and compares production data against configured tolerances.
Integrated HMI
Operators and supervisors can view live production data, manage recipes and tolerances, and identify process changes while production continues.
Measurement data that can become part of your process.
CMVS systems can support connection with plant automation and production information environments, helping measurement data move beyond the operator screen.
Expanded measurement range.
Key CMVS-55 specifications for larger armored and convoluted cable production applications.
Need complete technical information? View CMVS-55 Resources →
0.25–2.2 inches
At 80 ft/min / ±0.0508 mm at 25 m/min.
0.75 in / 19.05 mm.
Plus product length and production speed.
Operator and supervisor screens.
Industrial network connectivity.
Industrial DC power input.
32°F to 122°F.
Millimetres.
Explore the system in more detail.
Learn more about continuous machine vision for wire and cable production or review the CMVS-55 system with CORPEX.
Production Challenges & Solutions
See how continuous machine vision can help identify dimensional variation and process drift before they become larger quality, scrap and rework problems.
Discuss Your Application →CMVS-55 Data Sheet
Review the CMVS-55 measurement range, system architecture, accuracy, connectivity and application requirements with the CORPEX team.
Request CMVS-55 Data Sheet →Is the CMVS-55 the right range for your line?
Tell us what you're producing, your cable diameter, line speed and the measurements you need to control. We'll help determine which CORPEX system fits the application.
