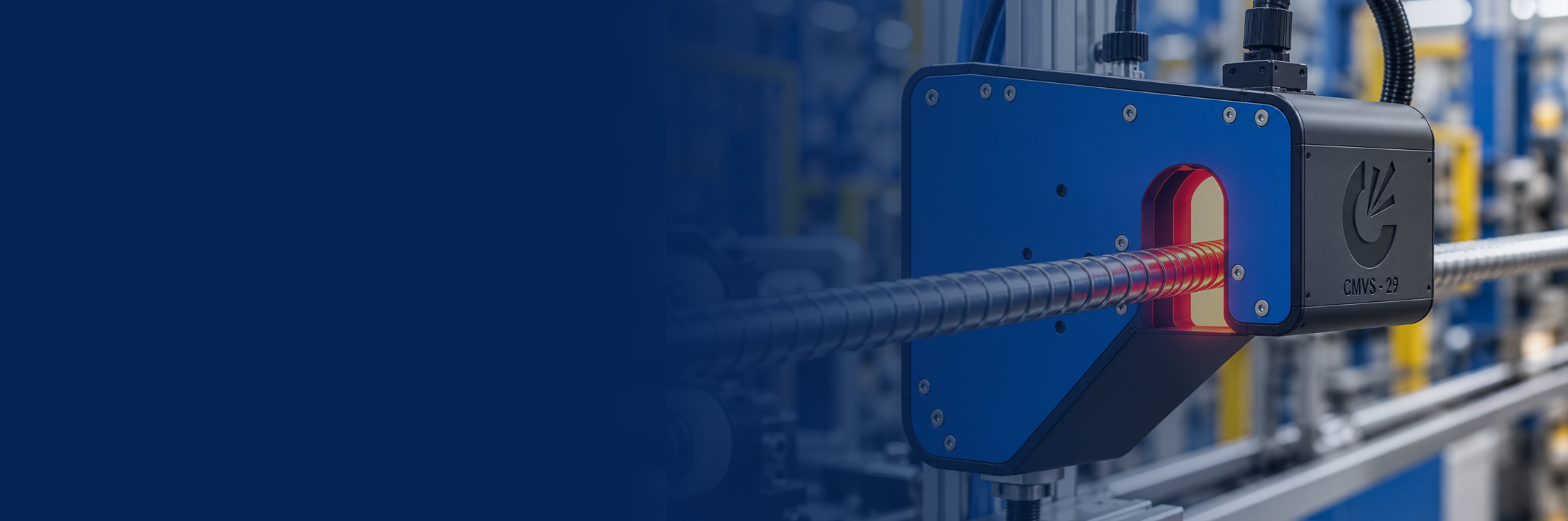

C29 COMPACT. PRECISE. REAL TIME.
Continuous machine vision measurement for wire and cable production, combining the sensor, industrial computer and operator interface in one compact system.
Target outside diameter
Accuracy at 80 ft/min
Maximum pitch
Continuous production visibility
Continuous measurement without the complexity.
The C29 gives wire and cable manufacturers continuous visibility into critical dimensions while production is running. Instead of relying only on periodic samples, operators can see dimensional changes as they happen.
Its compact integrated design brings the dedicated C29 sensor, industrial machine vision computer and HMI together in a streamlined system designed for the production floor.
Know when the process starts to drift.
Continuous measurement gives production teams the opportunity to identify dimensional variation while there is still time to make an adjustment.
Diameter variation
Continuously monitor outside diameter and identify dimensional changes while product is still moving through production.
Pitch variation
Track convolution pitch against defined tolerances instead of waiting for downstream inspection to reveal the issue.
Inspection gaps
Add continuous visibility between periodic quality checks and create better production information for troubleshooting.
Catching the problem earlier changes the economics.
At production speed, dimensional drift can continue for hundreds or thousands of feet before a periodic quality check identifies the problem.
The C29 gives operators visibility while the product is being made, creating an opportunity to respond before more material, production time and value are lost.
See what's happening while the line is running.
The integrated HMI puts critical measurement information where operators can use it.
- Outside diameter measurement
- Convolution pitch measurement
- Product length measurement
- Production speed visibility
- Recipe and tolerance management
- Operator and supervisor access
Everything needed for real-time cable measurement.
The C29 combines the core components of a production machine vision measurement system into one integrated platform.
C29 Sensor Head
A dedicated machine vision sensor continuously captures the product profile as cable moves through the inspection area.
Industrial Vision Computer
Measurement data is processed in real time and compared against configured production requirements.
Integrated HMI
Operators can view measurements, production information and system controls through the integrated interface.
The numbers that matter.
Key specifications for determining whether the C29 fits your wire or cable production application.
Need the complete technical information? Download the C29 Express Data Sheet →
0.20–1.15 inches
At production speeds up to 80 ft/min.
Maximum pitch 0.65 inches.
Plus product length and production speed.
Live operator and supervisor access.
Industrial network connectivity.
The production story or the technical details.
Choose the resource that matches where you are in evaluating the C29 for your line.
Wire & Cable Problem/Solution Guide
See how continuous machine vision can help identify OD variation, pitch changes and process drift before they become larger quality and scrap problems.
Download Problem/Solution Guide →C29 Express Data Sheet
Review the C29 system architecture, measurement capabilities, operating range, accuracy, connectivity and detailed technical specifications.
Download C29 Express Data Sheet →Could the C29 work on your line?
Tell us what you're producing, your product diameter, line speed and what you need to measure. We'll help determine whether the C29 is the right fit for your application.
Discuss Your Application →
