CMVS-35 BUILT FOR ARMORED CABLE PRODUCTION.
Continuous machine vision measurement for armored and convoluted cable production, tracking outside diameter, convolution pitch, length and production speed in real time.
Target outside diameter
Accuracy at 80 ft/min
Maximum pitch
Continuous production visibility
Real-time measurement built for armoring lines.
The CMVS-35 gives wire and cable manufacturers continuous visibility into critical dimensions while armored and convoluted cable is being produced.
High-speed machine vision tracks outside diameter, convolution pitch and product length while the line is running, giving operators immediate information when measurements begin to move outside defined tolerances.
Know when the armoring process starts to drift.
Continuous measurement gives production teams the opportunity to identify dimensional variation while there is still time to make an adjustment.
Diameter variation
Continuously monitor outside diameter and identify dimensional changes while armored cable is still moving through production.
Pitch variation
Track convolution pitch against defined tolerances and identify changes before downstream inspection reveals the problem.
Inspection gaps
Replace isolated snapshots with continuous production visibility, creating better information for quality control and troubleshooting.
Catching the problem earlier changes the economics.
At production speed, OD or pitch variation can continue for hundreds or thousands of feet before a periodic quality check identifies the problem.
The CMVS-35 gives operators visibility while armored cable is being produced, creating an opportunity to respond before more material, production time and value are lost.
See what's happening while the line is running.
The CMVS-35 HMI gives operators live measurement and production information so changes can be identified and addressed quickly.
- Outside diameter measurement
- Convolution pitch measurement
- Product length measurement
- Production speed visibility
- Recipe and tolerance management
- Operator and supervisor access
Capture. Measure. Respond.
The CMVS-35 brings together the sensor head, industrial machine vision computer and operator interface in a production-ready measurement system.

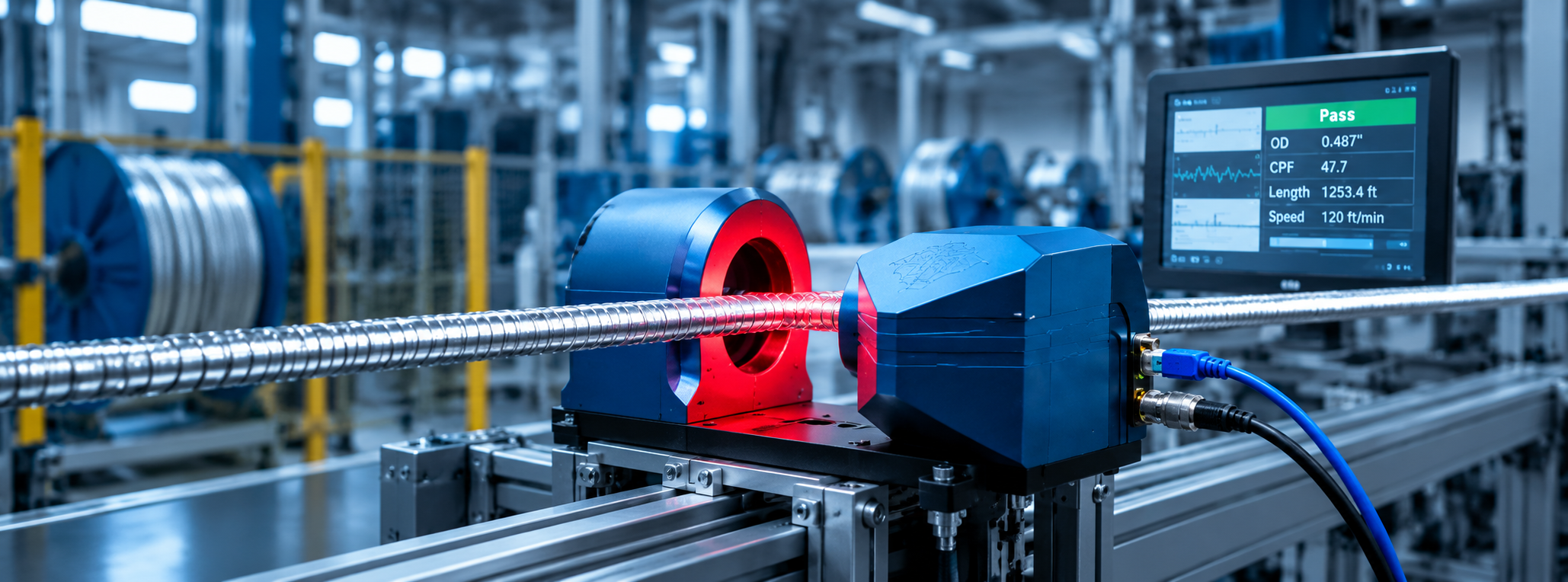

CMVS-35 Sensor Head
High-resolution machine vision continuously captures the armored or convoluted cable profile as product moves through the measurement area.
Industrial Vision Computer
Vision and measurement processing runs in real time, calculating critical dimensions and comparing results against configured production tolerances.
Operator HMI
Operators see OD, pitch, length and speed live, with access to recipes, tolerances and production information through the system interface.
The numbers that matter.
Key specifications for determining whether the CMVS-35 fits your armored or convoluted cable production application.
Need the complete technical information? Download the CMVS-35 Data Sheet →
0.15–1.35 inches
At 80 ft/min / ±0.0254 mm at 25 m/min.
0.65 in / 16.5 mm (59 CPM).
Plus product length and production speed.
Operator and supervisor screen.
Industrial network connectivity.
M8 3-pin connector female.
32°F to 122°F.
Millimetres / 5.16 × 9.45 × 15.75 inches.
Explore the system in more detail.
Review how machine vision supports wire and cable production or dig into the CMVS-35 system architecture and specifications.
Production Challenges & Solutions
See how continuous machine vision can help identify OD variation, pitch changes and process drift before they become larger quality and scrap problems.
Discuss Your Application →CMVS-35 Data Sheet
Review the CMVS-35 architecture, measurement capabilities, operating range, accuracy, connectivity and detailed technical specifications.
Download CMVS-35 Data Sheet →Could the CMVS-35 work on your line?
Tell us what you're producing, your product diameter, line speed and what you need to measure. We'll help determine whether the CMVS-35 is the right fit for your application.
Discuss Your Application →
